# 第二十课：基于snmp发现内网存活主机

## SNMP简介：

SNMP是一种简单网络管理协议，它属于TCP/IP五层协议中的应用层协议，用于网络管理的协议。SNMP主要用于网络设备的管理。SNMP协议主要由两大部分构成：SNMP管理站和SNMP代理。SNMP管理站是一个中心节点，负责收集维护各个SNMP元素的信息，并对这些信息进行处理，最后反馈给网络管理员；而SNMP代理是运行在各个被管理的网络节点之上，负责统计该节点的各项信息，并且负责与SNMP管理站交互，接收并执行管理站的命令，上传各种本地的网络信息。

## nmap扫描：

```bash
root@John:~# nmap -sU --script snmp-brute 192.168.1.0/24 -T4
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqc1oK-rOHr0CsO-%2F045b3f2f2c7da50d9f2b8a1ad9f86a0e.jpg?generation=1551060450746277\&alt=media)

## msf扫描：

```bash
msf > use auxiliary/scanner/snmp/snmp_enum
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqc34Anqhvap8MY1%2F4f92b1b39415a27bc404e01c05ef6bfb.jpg?generation=1551060431162752\&alt=media)

项目地址：\
<https://www.mcafee.com/us/downloads/free-tools/snscan.aspx>\
依然是一块macafee出品的攻击\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqc54EmUAH-NmHnA%2Fb8c3f5e36ed6a251a9d7c6ff3f00f665.jpg?generation=1551060438874900\&alt=media)

## NetCrunch：

项目地址：\
<https://www.adremsoft.com/demo/>\
内网安全审计工具，包含了DNS审计，ping扫描，端口，网络服务等。\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqc7l4kwrCS75aQx%2F19aed1cd1327808c60a4f944fe83a838.jpg?generation=1551060442675429\&alt=media)

## snmp for pl扫描：

项目地址：\
<https://github.com/dheiland-r7/snmp>

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqc9Y2AAiwi-KFDs%2Ff0ab120e48d6c92d5c5596352f81355d.jpg?generation=1551060437411219\&alt=media)

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcBFmL_Ys3oqDG2%2F0f3812a0ec50201e000ae56a7d127210.jpg?generation=1551060427222448\&alt=media)

## 其他扫描：

snmpbulkwalk：\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcDXEsSKj0-YQe9%2F6d6d4d08c98c2861e776b8f01b977bb7.jpg?generation=1551060428963306\&alt=media)

snmp-check：\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcFmkuZH0e8uyAV%2F54949180a485e0f4ec2884da361a2bce.jpg?generation=1551060436601325\&alt=media)

snmptest：\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcHUCDGXG3lDJXw%2Fd34215b3490fae6d1722a950facdf77e.jpg?generation=1551060433862159\&alt=media)

## 附录：

```bash
use auxiliary/scanner/snmp/aix_version use auxiliary/scanner/snmp/snmp_enum
use auxiliary/scanner/snmp/arris_dg950
use auxiliary/scanner/snmp/snmp_enum_hp_laserjet
use auxiliary/scanner/snmp/brocade_enumhash use auxiliary/scanner/snmp/snmp_enumshares
use auxiliary/scanner/snmp/cambium_snmp_loot use auxiliary/scanner/snmp/snmp_enumusers
use auxiliary/scanner/snmp/cisco_config_tftp use auxiliary/scanner/snmp/snmp_login
use auxiliary/scanner/snmp/cisco_upload_file use auxiliary/scanner/snmp/snmp_set
use auxiliary/scanner/snmp/netopia_enum
use auxiliary/scanner/snmp/ubee_ddw3611
use auxiliary/scanner/snmp/sbg6580_enum
use auxiliary/scanner/snmp/xerox_workcentre_enumusers
```

其他内网安全审计工具（snmp）：\
项目地址：<https://www.solarwinds.com/topics/snmp-scanner>\
项目地址：<https://www.netscantools.com/nstpro_snmp.html>

## snmp for pl ：

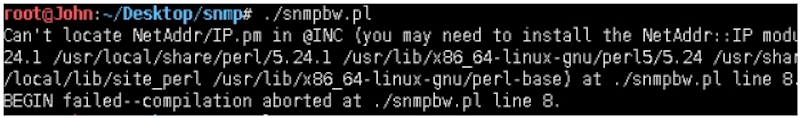

Can't locate NetAddr/IP\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcJeiQCAxHpiqJv%2Fbc665f1b06550f7d8e81ec4ef5dfbbb8.jpg?generation=1551060430901408\&alt=media)

```bash

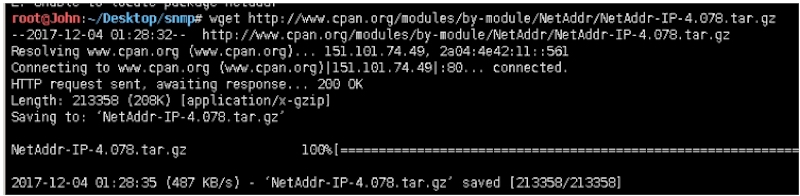

root@John:~/Desktop/snmp# wget http://www.cpan.org/modules/by-module/NetAddr/NetAddr-IP-4.078.tar.gz
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcLXIRG9gTlA7-J%2Fce0a8f4a495c9a33f152c1d4e996a021.jpg?generation=1551060446719901\&alt=media)

```bash
root@John:~/Desktop/snmp# tar xvzf ./NetAddr-IP-4.078.tar.gz
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcNQC24T0FHLERX%2Fcd8ede5c8e7edeaa7e7c7901c0a7c4b2.jpg?generation=1551060430160038\&alt=media)

```bash
root@John:~/Desktop/snmp# cd NetAddr-IP-4.078/
root@John:~/Desktop/snmp/NetAddr-IP-4.078# ls
About-NetAddr-IP.txt Artistic Changes
Copying docs IP.pm Lite Makefile.PL
MANIFEST MANIFEST.SKIP META.yml t TODO
root@John:~/Desktop/snmp/NetAddr-IP-4.078# perl Makefile.PL
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcPj6tHgtCzkWsN%2Fb095c67e64484673aca21d97843a8275.jpg?generation=1551060437186562\&alt=media)

```bash
root@John:~/Desktop/snmp/NetAddr-IP-4.078# make
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcRKDQcjnXPehyG%2F42807ab04c2def49a5d85520601c49ca.jpg?generation=1551060441073771\&alt=media)

```bash
root@John:~/Desktop/snmp/NetAddr-IP-4.078# make install
```

![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcT9sFGlYY0cI7H%2F7c5dfdd85bc7f5f74a30cb799e92beb1.jpg?generation=1551060452882123\&alt=media)

\> \_ < !!\
![](https://1465213733-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-LZJtlFN7NOR8zMCiJsm%2F-LZXOtmCj3pT3_pYH1dV%2F-LZJwqcVudv4ixotjV1_%2Ff171e221b9c374de99d4f973a5b5b400.jpg?generation=1551060445298644\&alt=media)

> Micropoor
